Wheel Fitting Studs, Nuts and Bolts
When fitting non-standard wheels and spacers to your Volkswagen you will probobly need to use longer bolts or studs. You might also need to change the type of bolt or nut to suit the profile of the wheels (radius or cone).
All threads are M14 x 1.5 unless otherwise stated.
Studs
| Type | Length (mm) | Thread protruding (mm) | Price |
|---|---|---|---|
| Screw in | 80 | 65 | £2.50 |
| Press in | 70 | 60 | £3.00 |
Note: Standard front hub needs screw in studs, and rear needs press in studs.
Nuts and bolts
| Type | Length (mm) | Price |
|---|---|---|
| Bolt - Radius | 28 | £1.30 |
| Bolt - Cone (60°) | 28 | £1.30 |
| Bolt - Small radius | 60 | £2.40 |

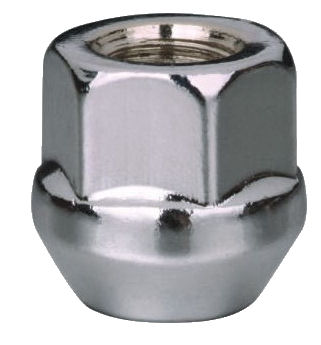

| Open ended nut - Radius | £1.45 | |
| Open ended nut - Cone (60°) | £1.45 | |
| Closed ended nut - Small radius | £1.45 |
Locking Nuts and bolts
| Type | Length (mm) | Price |
|---|---|---|
| Bolt - Radius | 28 | £15.00 |
| Bolt - Cone | 28 | £15.00 |
| Nut - Radius | POA | |
| Nut - Cone | POA |
